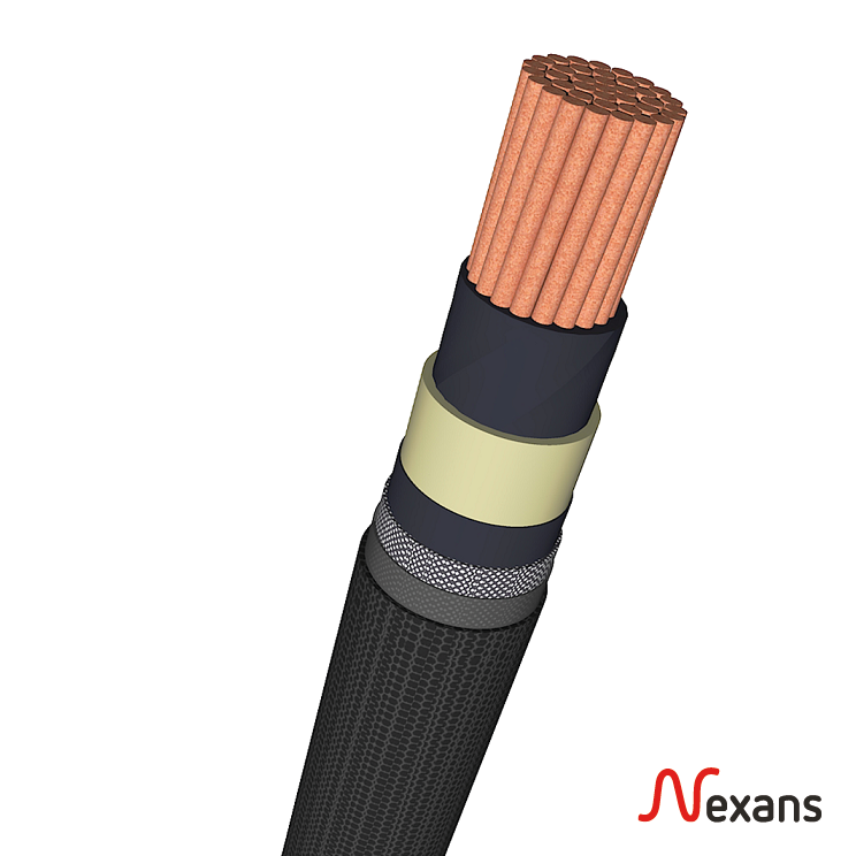

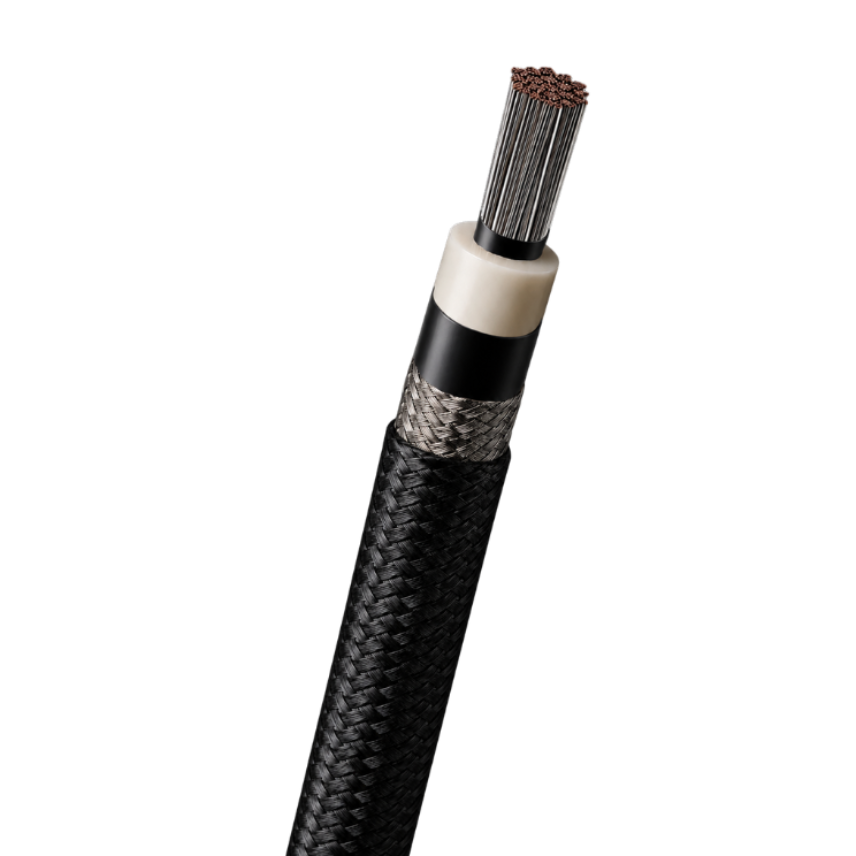

Nexans SIWO-KUL® S10 12 kV
Nexans SIWO-KUL® S10 12 kV
The SIWO-KUL® S10 12/20 kV cable family is designed to deliver maximum reliability in environments subject to high thermal, electrical and mechanical stress. Thanks to their high flexibility and resistance to thermal shock, oils and other solvents, these cables ensure long-lasting performance in railway, marine and energy industrial applications.
MeerSIWO-KUL S10 1x16 12 kV BK
Nexans ref. 10549546
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 16 mm²
- Buitendiameter, nominaal: 18,0 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x25 12 kV BK
Nexans ref. 10543322
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 25 mm²
- Buitendiameter, nominaal: 19,6 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x35 12 kV BK
Nexans ref. 10543323
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 35 mm²
- Buitendiameter, nominaal: 21,9 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x50 12 kV BK
Nexans ref. 10539367
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 50 mm²
- Buitendiameter, nominaal: 22,6 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x95 12 kV BK
Nexans ref. 10500272
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 95 mm²
- Buitendiameter, nominaal: 26,9 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x120 12 kV BK
Nexans ref. 10549558
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 120 mm²
- Buitendiameter, nominaal: 28,0 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x150 12 kV BK
Nexans ref. 10541878
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 150 mm²
- Buitendiameter, nominaal: 30,2 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x185 12 kV BK
Nexans ref. 10222409
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 185 mm²
- Buitendiameter, nominaal: 32,2 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x240 12 kV BK
Nexans ref. 10506494
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 240 mm²
- Buitendiameter, nominaal: 34,4 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x300 12 kV BK
Nexans ref. 10543325
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 300 mm²
- Buitendiameter, nominaal: 37,9 mm
- Bedrijfsspanning: 12 kV
SIWO-KUL S10 1x70 12 kV BK
Nexans ref.
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 70 mm²
- Buitendiameter, nominaal: 24,4 mm
- Bedrijfsspanning: 15 kV
Beschrijving
Beschrijving
Normen
-
ProductIEC 60228
-
InstallatieIEC 60092
-
TestenIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® S10 12/20 kV cable range is specifically developed for:
- Connection of medium-voltage rotating machines and transformers
- Wiring of power cabinets, converters and motor controls
- Industrial installations exposed to high mechanical stress
- Wind, marine and railway OEM applications
Key Advantages
- Excellent flexibility, ideal for compact installations
- Outstanding thermal resistance (-55°C to +180°C continuous operation)
- Metallic braid shielding against electromagnetic interference
- Patented technology ensuring minimal partial discharge levels, even under severe stress
- Reinforced mechanical protection
- Very good resistance to oils, UV and chemical agents
- High durability for long service life
- International approvals and certifications
- Medium-voltage terminations and custom lengths available
By choosing the SIWO-KUL® range, you opt for a flexible, robust and durable cable designed to guarantee high performance in the most demanding environments.
