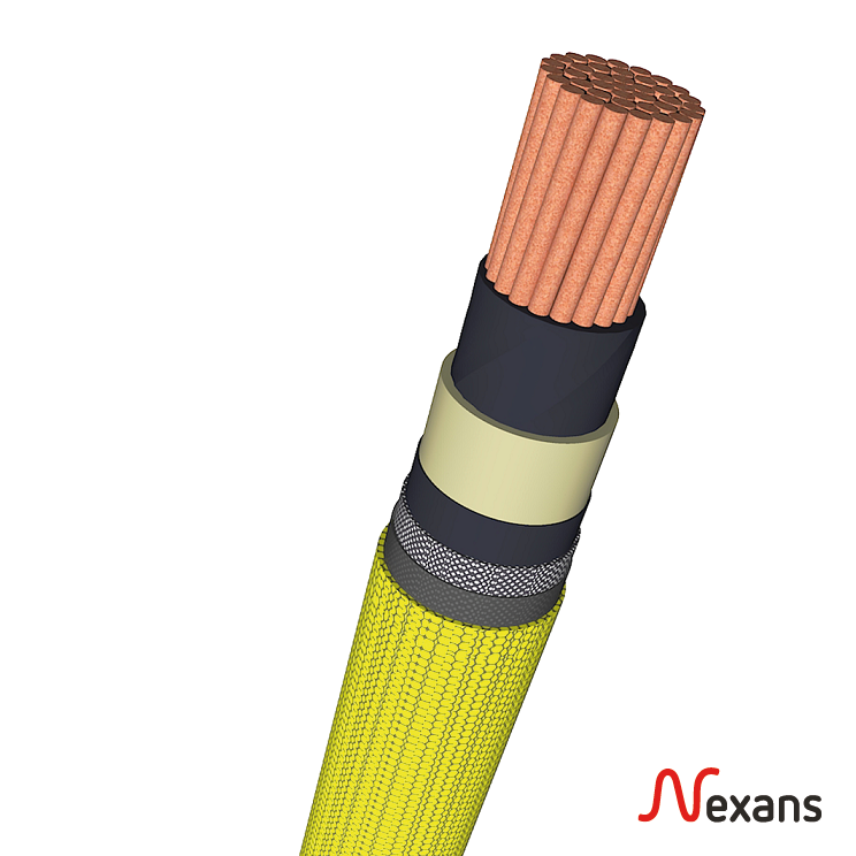

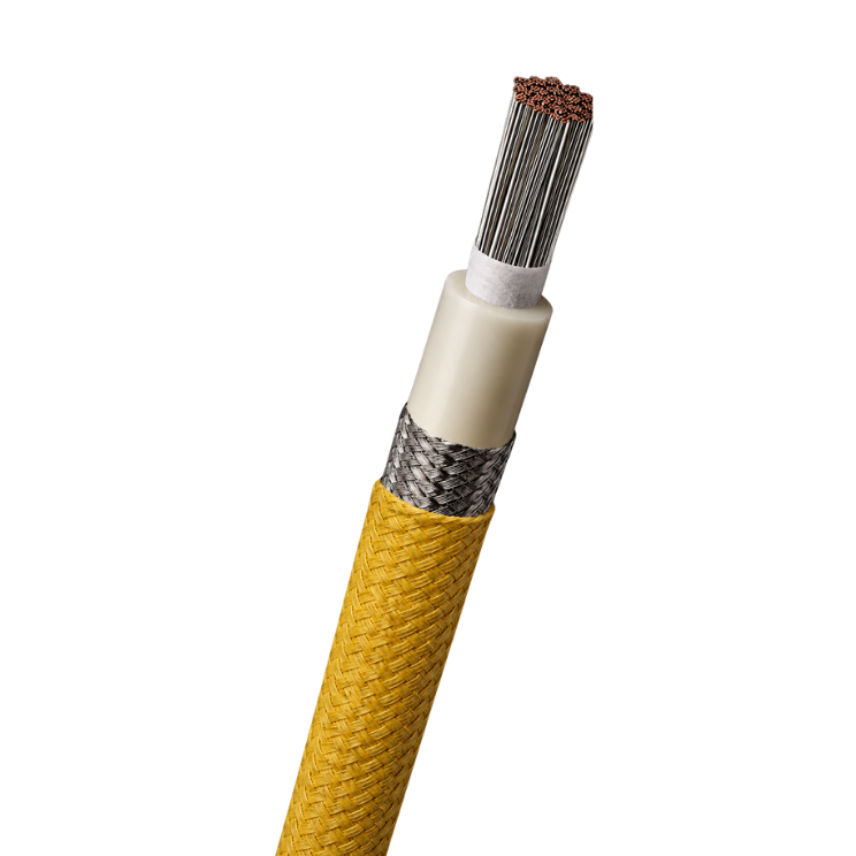

Nexans SIWO-KUL® S10 1.1 kV
Nexans SIWO-KUL® S10 1.1 kV
The SIWO-KUL® S10 1.1 kV cable family is designed to deliver maximum reliability in environments subject to high thermal, electrical and mechanical stress. Thanks to their high flexibility and resistance to thermal shock, oils and other solvents, these cables ensure long-lasting performance in railway, marine and energy industrial applications.
MeerSIWO-KUL S10 1x2,5 1,1 kV YE
Nexans ref.
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 2,5 mm²
- Buitendiameter, nominaal: 6,9 mm
SIWO-KUL S10 1x6,0 1,1 kV YE
Nexans ref. 10543302
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 6 mm²
- Buitendiameter, nominaal: 7,85 mm
SIWO-KUL S10 1x10 1,1 kV YE
Nexans ref. 10543303
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 10 mm²
- Buitendiameter, nominaal: 8,8 mm
SIWO-KUL S10 1x16 1,1 kV YE
Nexans ref. 10543304
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 16 mm²
- Buitendiameter, nominaal: 11,3 mm
SIWO-KUL S10 1x25 1,1 kV YE
Nexans ref. 10510871
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 25 mm²
- Buitendiameter, nominaal: 12,85 mm
SIWO-KUL S10 1x35 1,1 kV YE
Nexans ref. 10511466
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 35 mm²
- Buitendiameter, nominaal: 14,15 mm
SIWO-KUL S10 1x50 1,1 kV YE
Nexans ref. 10539524
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 50 mm²
- Buitendiameter, nominaal: 16,15 mm
SIWO-KUL S10 1x70 1,1 kV YE
Nexans ref. 10510872
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 70 mm²
- Buitendiameter, nominaal: 18,35 mm
SIWO-KUL S10 1x95 1,1 kV YE
Nexans ref. 10510870
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 95 mm²
- Buitendiameter, nominaal: 21,2 mm
SIWO-KUL S10 1x120 1,1 kV YE
Nexans ref. 10512514
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 120 mm²
- Buitendiameter, nominaal: 22,75 mm
SIWO-KUL S10 1x150 1,1 kV YE
Nexans ref. 10526846
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 150 mm²
- Buitendiameter, nominaal: 24,55 mm
SIWO-KUL S10 1x185 1,1 kV YE
Nexans ref. 10539775
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 185 mm²
- Buitendiameter, nominaal: 26,0 mm
SIWO-KUL S10 1x240 1,1 kV YE
Nexans ref. 10505413
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 240 mm²
- Buitendiameter, nominaal: 29,6 mm
SIWO-KUL S10 1x300 1,1 kV YE
Nexans ref. 10543305
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 300 mm²
- Buitendiameter, nominaal: 31,65 mm
Beschrijving
Beschrijving
Normen
-
ProductCSA C22.2 N° 210-05; IEC 60228; IEC 60502-2
-
InstallatieIEC 60092
-
TestenIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® S10 1.1 kV cable range is specifically developed for:
- Connection of rotating machines and transformers
- Wiring of power cabinets, converters and motor controls
- Industrial installations exposed to high mechanical stress
- Vibrating environments requiring long-term flexibility
- Wind, marine and railway OEM applications
Key Advantages
- Excellent flexibility, ideal for compact installations
- Outstanding thermal resistance (-55°C to +180°C continuous operation)
- Metallic braid shielding against electromagnetic interference
- Reinforced mechanical protection
- Very good resistance to oils, UV and chemical agents
- High durability for long service life
- International approvals and certifications
- Custom-made terminations and lengths available
By choosing the SIWO-KUL® range, you opt for a flexible, robust and durable cable designed to guarantee high performance in the most demanding environments.
