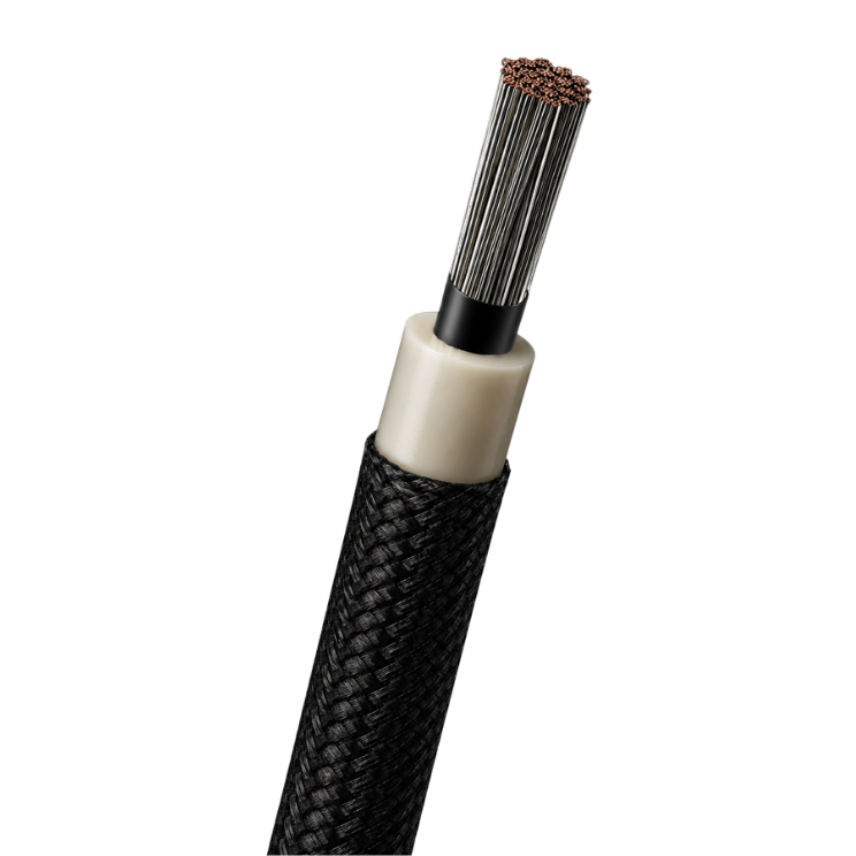

Nexans SIWO-KUL® B20 13.8 / 15 kV
Nexans SIWO-KUL® B20 13.8 / 15 kV
The SIWO-KUL® B20 13.8/15 kV cable family is designed to provide maximum reliability in environments subject to high thermal, electrical, and mechanical stresses. Thanks to their high flexibility and resistance to thermal shock, oils, and other solvents, these cables ensure long-lasting performance in railway, marine, and energy-related industrial applications.
MeerSIWO-KUL B20 1x6 13,8/15 kV BK
Nexans ref. SIL13.8-6
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 6 mm²
- Buitendiameter, nominaal: 11,25 mm
SIWO-KUL B20 1x10 13,8/15 kV BK
Nexans ref. 10504075
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 10 mm²
- Buitendiameter, nominaal: 12,25 mm
SIWO-KUL B20 1x16 13,8/15 kV BK
Nexans ref. 10503824
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 16 mm²
- Buitendiameter, nominaal: 14,2 mm
SIWO-KUL B20 1x25 13,8/15 kV BK
Nexans ref. 10195655
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 25 mm²
- Buitendiameter, nominaal: 15,7 mm
SIWO-KUL B20 1x35 13,8/15 kV BK
Nexans ref. 10202235
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 35 mm²
- Buitendiameter, nominaal: 16,6 mm
SIWO-KUL B20 1x50 13,8/15 kV BK
Nexans ref. 10211177
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 50 mm²
- Buitendiameter, nominaal: 18,7 mm
SIWO-KUL B20 1x70 13,8/15 kV BK
Nexans ref. 10214912
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 70 mm²
- Buitendiameter, nominaal: 20,2 mm
SIWO-KUL B20 1x95 13,8/15 kV BK
Nexans ref. 10509180
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 95 mm²
- Buitendiameter, nominaal: 21,9 mm
SIWO-KUL B20 1x120 13,8/15 kV BK
Nexans ref. 10509336
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 120 mm²
- Buitendiameter, nominaal: 23,9 mm
SIWO-KUL B20 1x150 13,8/15 kV BK
Nexans ref. 10503825
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 150 mm²
- Buitendiameter, nominaal: 26,1 mm
SIWO-KUL B20 1x185 13,8/15 kV BK
Nexans ref. 10503826
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 185 mm²
- Buitendiameter, nominaal: 27,5 mm
SIWO-KUL B20 1x240 13,8/15 kV BK
Nexans ref. 10503827
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 240 mm²
- Buitendiameter, nominaal: 30,4 mm
SIWO-KUL B20 1x300 13,8/15 kV BK
Nexans ref. 10503828
- Verpakking: Snijlengte (m)
- Geleiderdoorsnede: 300 mm²
- Buitendiameter, nominaal: 34,75 mm
Beschrijving
Beschrijving
Normen
-
ProductCSA C22.2 N° 210-05; IEC 60228; UL 758
-
InstallatieIEC 60092
-
TestenIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® B20 13.8/15 kV cable range is specifically developed for:
- Connection of windings in rotating machines and medium voltage transformers
- Thermal insulation class F and H
- Wiring of power cabinets, converters, and motor controls
- Industrial installations exposed to high thermal stress
- Wind, marine, and railway OEM applications
Key Benefits
- High flexibility ideal for compact installations
- Excellent thermal resistance (-55°C to +180°C continuous operation)
- Patented technology ensuring minimal partial discharges (PD), even under high stress conditions
- Compatible with major impregnation resins
- Mechanical protection
- Good resistance to oils, UV radiation, and chemical agents
- High durability for long service life
- International approvals and certifications
- Fire performance
By choosing the SIWO-KUL® range, you opt for a flexible, robust, and durable cable designed to ensure high performance in the most demanding environments.
