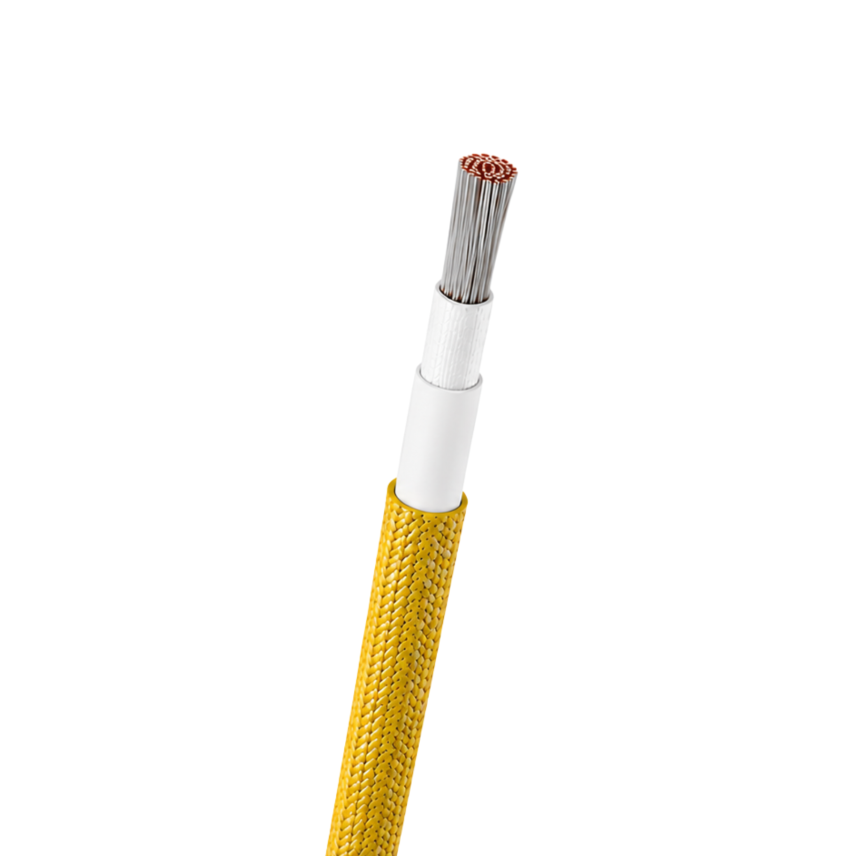

SIWO-KUL® B20 1.1 / 1.5 kV

Application

• Connection of rotating machines windings, like motors, alternators, generators.
• Cabling of static devices, like power converters, motor drives, power cabinets, transformers
• Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems

Construction

• Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
• High grade silicon rubber insulation
• Mechnical protection by silicone coated synthetic fibre braid

Properties

• Operating temperature in continuous mode -55°C to +180°C
• Resistance to thermal shocks, UV and oils
• Compatibility to VPI impregnation resins

• Type approval certificate : Lloyds Register LR21139304TA
• Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
• Certificate of compliance : UL758 AWM Style 3640, file : AVLV2.E45073
• Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
