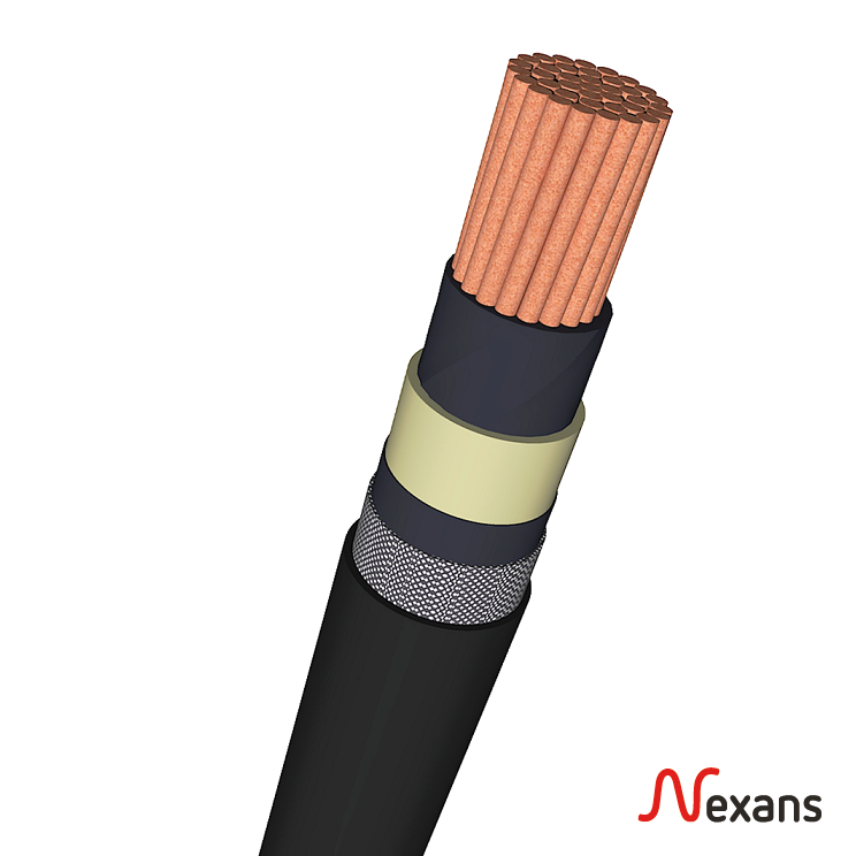

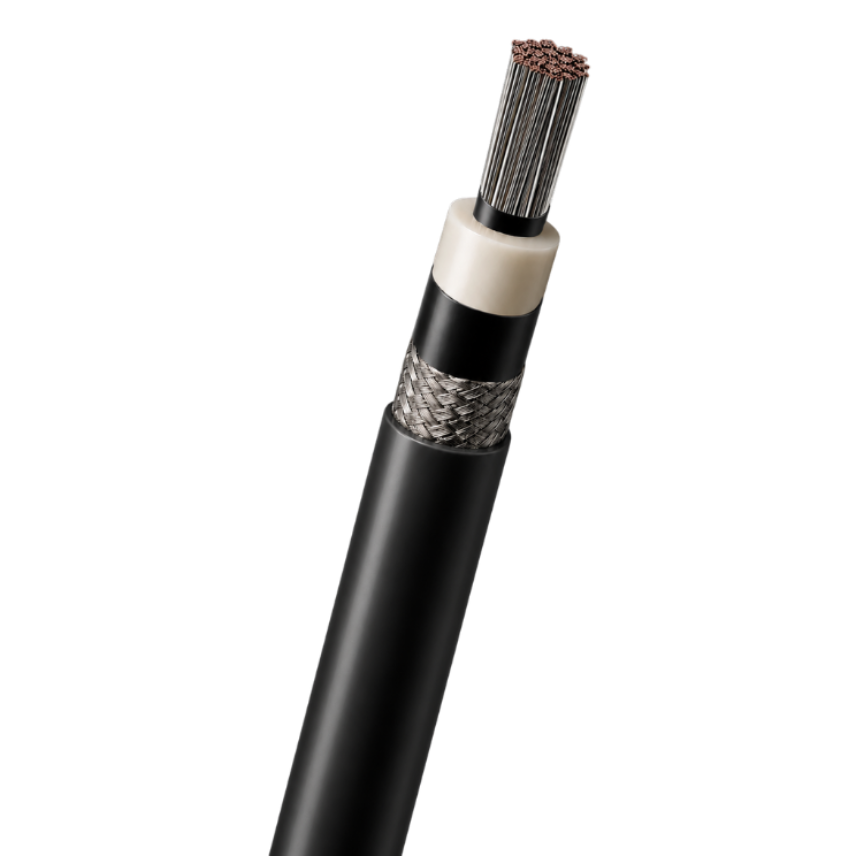

Nexans SIWO-KUL® S30 12 kV
Nexans SIWO-KUL® S30 12 kV
The SIWO-KUL® S30 12/20 kV cable family is designed to deliver maximum reliability in environments subject to high thermal, electrical and mechanical stress. Thanks to their high flexibility and resistance to thermal shock, oils and other solvents, these cables ensure long-lasting performance in railway, marine and energy industrial applications.
Read moreSIWO-KUL S30 1x16 12 kV BK
Nexans ref. 60012646
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 21.8 mm
SIWO-KUL S30 1x25 12 kV BK
Nexans ref. 10207759
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 21.9 mm
SIWO-KUL S30 1x35 12 kV BK
Nexans ref. 10549497
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 24.2 mm
SIWO-KUL S30 1x50 12 kV BK
Nexans ref. 10224688
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 25.9 mm
SIWO-KUL S30 1x70 12 kV BK
Nexans ref. 10560244
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 29.2 mm
SIWO-KUL S30 1x95 12 kV BK
Nexans ref. 60011923
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 29.6 mm
SIWO-KUL S30 1x120 12 kV BK
Nexans ref. 10567757
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 31.5 mm
SIWO-KUL S30 1x150 12 kV BK
Nexans ref. 60500694
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 34.9 mm
SIWO-KUL S30 1x185 12 kV BK
Nexans ref. 60500695
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 35.6 mm
SIWO-KUL S30 1x240 12 kV BK
Nexans ref. 60012240
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 37.8 mm
Description
Description
Standards
-
ProductIEC 60228
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® S30 12/20 kV cable range is specifically developed for:
- Connection of medium-voltage rotating machines and transformers
- Wiring of power cabinets, converters and motor controls
- Industrial installations exposed to high mechanical stress
- Wind, marine and railway OEM applications
Key Advantages
- Excellent flexibility, ideal for compact installations
- Outstanding thermal resistance (-55°C to +180°C continuous operation)
- Metallic braid shielding against electromagnetic interference
- Patented technology ensuring minimal partial discharge levels, even under severe stress
- Silicone outer sheath
- Very good resistance to oils, UV and chemical agents
- High durability for long service life
- International approvals and certifications
- Medium-voltage terminations and custom lengths available
By choosing the SIWO-KUL® range, you opt for a flexible, robust and durable cable designed to guarantee high performance in the most demanding environments.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
