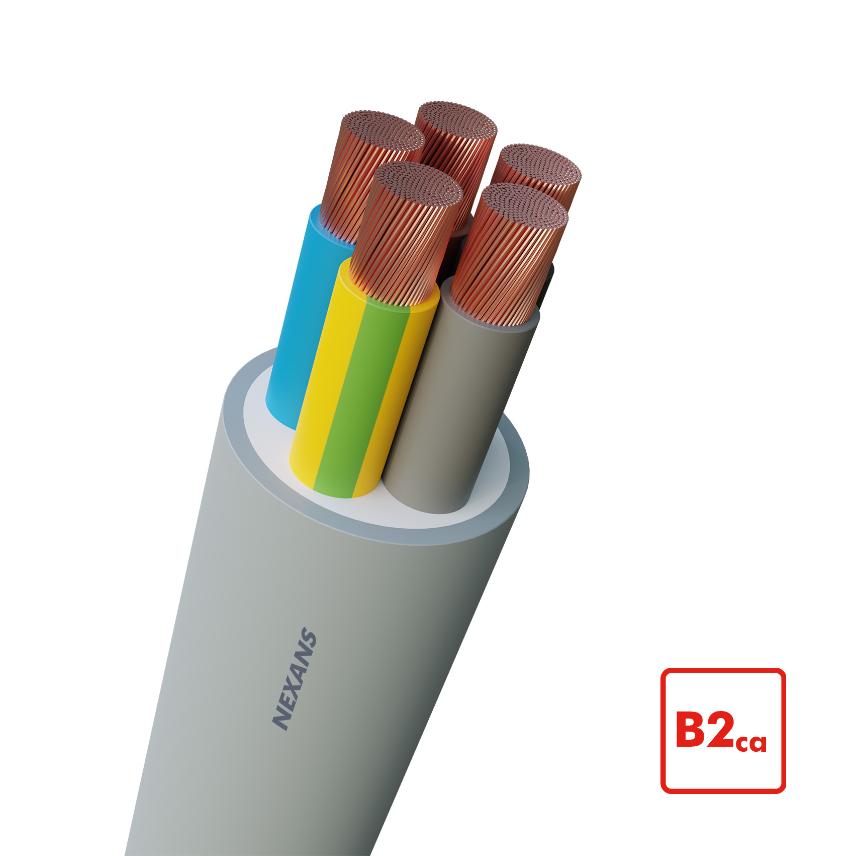

ALSECURE YMz1K ss B2ca ULTRAFLEX 5G35 mm2
ALSECURE YMz1K ss B2ca ULTRAFLEX 5G35 mm2
YMz1K ss ULTRAFLEX is an extra flexible halogen free power cable according to fire classification B2ca-s1,d1,a1 for connection in low voltage installations up to 0.6/1 kV in construction works with a very high fire hazard level.
Read more- Nexans ref. : 10542340
- EAN : 5413404314003
Description
Description
Standards
-
InternationalHD 604 S1 part 5/sect. C; IEC 60228
Applications
ALSECURE YMz1K ss B2ca ULTRAFLEX is an extra flexible halogen free power cable for general use in construction works subject to performance requirements on reaction to fire. ALSECURE® YMz1K ss B2ca ULTRAFLEX is suitable for application in low voltage installations up to 0.6/1 kV, according to NEN1010. It meets the requirements according to fire classification B2ca-s1,d1,a1 for buildings and civil engineering works with a very high fire hazard level (NEN 8012).
Design
- Conductor: Bare copper, stranded, class 5 / resistance class 2
- Insulation: XLPE
- Inner covering: Halogen free compound
- Outer sheath: Halogen free compound
Colour: grey
UV resistance: Yes
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Marking
ALSECURE YMz1K-ss B2ca n (x or G) s mm²
NEXANS BENELUX
KEMA KEUR
Meter Marking
Core identification
- 1 core: neutral
- 2 cores: brown - light blue
- 3G cores: green/yellow - light blue - brown
- 3x cores: black -grey- brown
- 4 cores: green/yellow - brown-black-grey
- 5 cores: green/yellow - light blue - brown - black - grey
Declaration of Performance
- Declaration of Performance n� : 1000612-BEDO
- Certification Date : 12/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 1+
- Notified body : NB 2658
- Declared performance : B2ca-s1,d1,a1
