Nexans H07V-U Eca Mobiway POP
Nexans H07V-U Eca Mobiway POP
MOBIWAY
H07V-U Eca is an installation wire in cartridge-packaging for Mobiway POP. H07V-U Eca is a solid PVC installation wire intended for protected fixed domestic and industrial installations. Installation may be in pipes or gutters embedded in the wall or floor or surface mounted. H07V-U Eca has a very low friction factor which makes it easy to slide and pull into pipes. In addition, H07V-U Eca is easy to strip, making it quick to process. The cartridges are to be placed in the Mobiway POP system. With Mobiway POP you can easy pull wires without boxes standing in the way.. H07V-U Eca meets fire class Eca according to EN 50575.

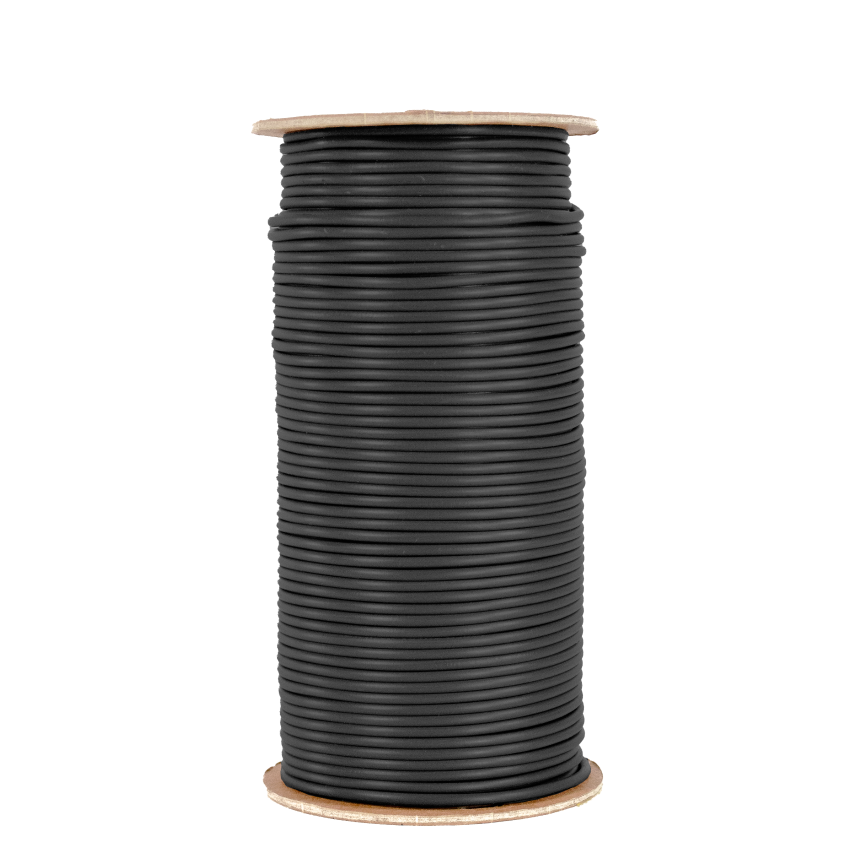

Read moreNexans H07V-U Eca VD 1.5 mm2 black Mobiway POP100 NEW
Nexans ref. 10588640
- Packaging: Spool (100m)
- Wire colour: Black
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 18 A
- Voltage drop, single phase: 24.2 V/A.km

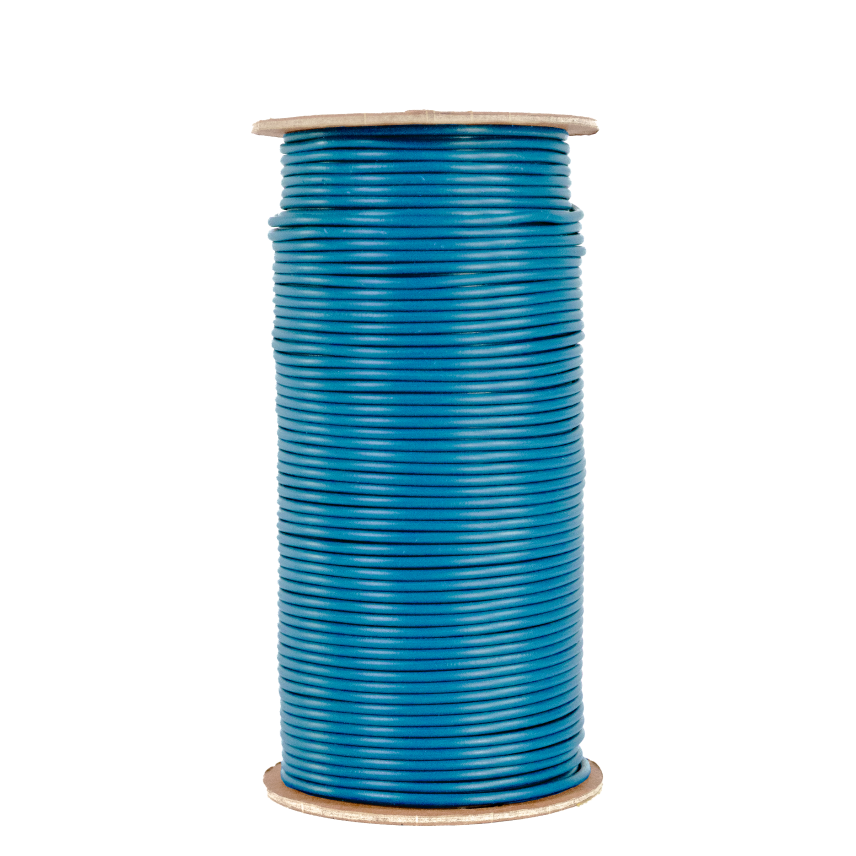

Nexans H07V-U Eca VD 2.5 mm2 blue Mobiway POP100 NEW
Nexans ref. 10588607
- Packaging: Spool (100m)
- Wire colour: Blue
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 24 A
- Voltage drop, single phase: 14.8 V/A.km

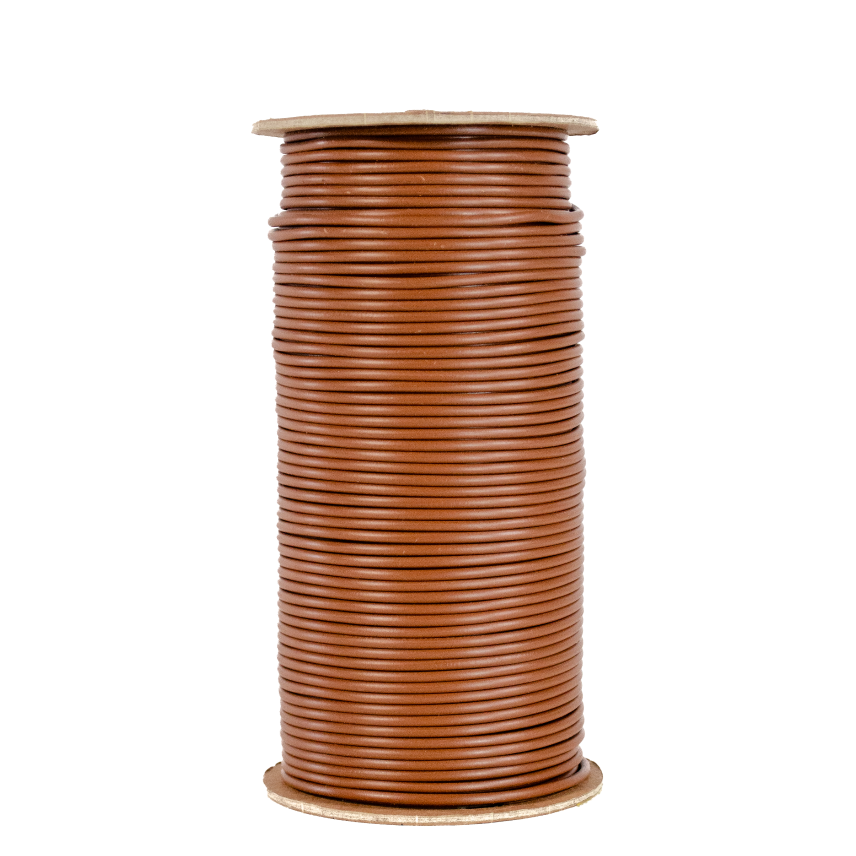

Nexans H07V-U Eca VD 2.5 mm2 brown Mobiway POP100 NEW
Nexans ref. 10588608
- Packaging: Spool (100m)
- Wire colour: Brown
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 24 A
- Voltage drop, single phase: 14.8 V/A.km

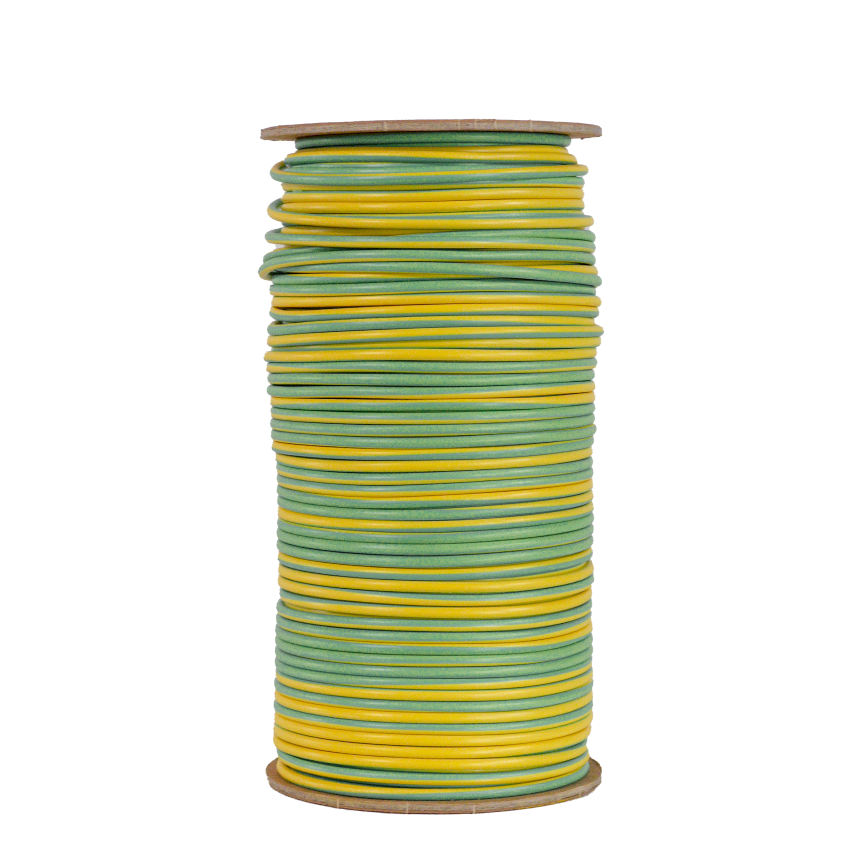

Nexans H07V-U Eca VD 2.5 mm2 green/yellow Mobiway POP100 NEW
Nexans ref. 10588609
- Packaging: Spool (100m)
- Wire colour: Green / yellow
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 24 A
- Voltage drop, single phase: 14.8 V/A.km
Description
Description
Standards
-
ProductEN 50525-2-31; IEC 60228
Application
H07V-U Eca is an installation wire according to fire classification Eca for use indoor in residential and similar installations with a low fire hazard level. They have a low friction coefficient and are suitable for fixed installation in tubes or skirting-board systems.
Design
- Conductor: Bare copper, solid, class 1
- Insulation: Special PVC, with enhanced sliding properties
- Section: 1.5 mm² and 2.5 mm²
- Packaging: 100m in the VOBbox (VDbox), a moisture-proof cardboard with color recognition
- Available colours: Green/yellow, brown, blue, black, grey, red, orange and black-white
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
