SIWO-KUL® B20 3.3 / 4.2 kV
SIWO-KUL® B20 3.3 / 4.2 kV

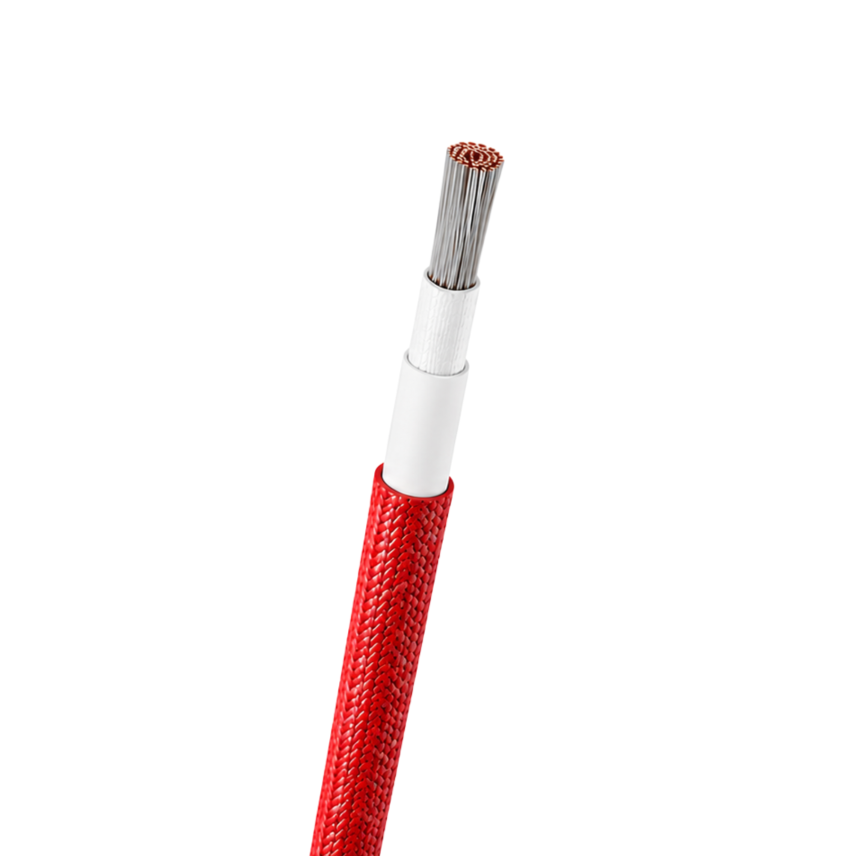

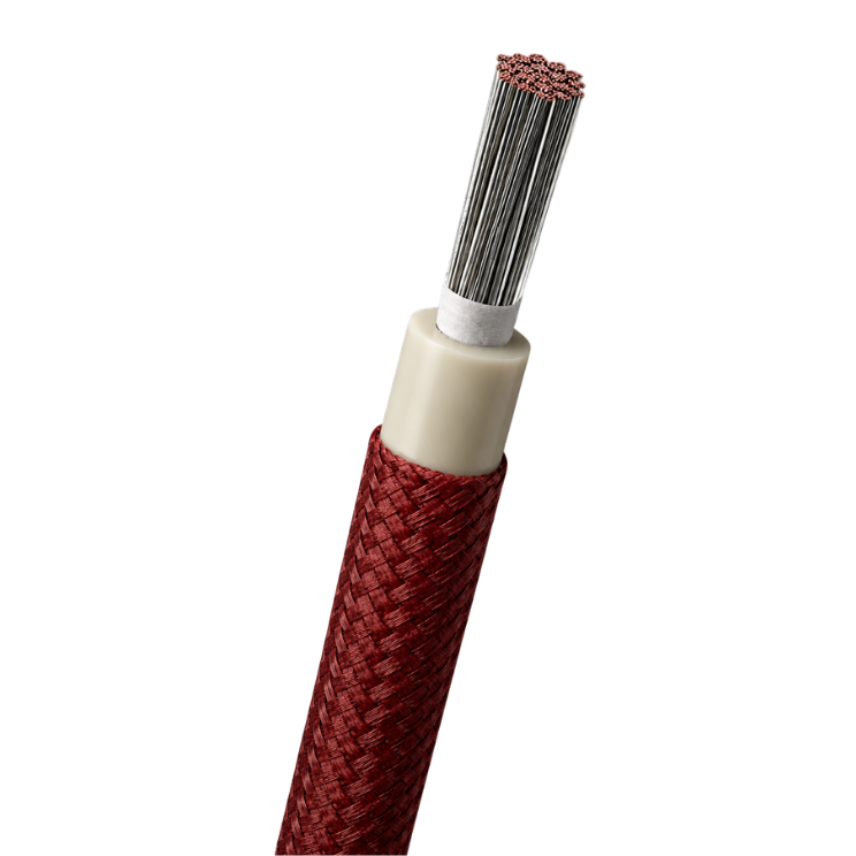

SIWO-KUL® B20 3.3/4.2 kV MV high temperature flexible cables designed with a PET braid, SILICONE varnished
Read moreSIWO-KUL B20 1x4.0 3,3/4,2 kV RD
Nexans ref. SIL3.3-4
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 9.3 mm
SIWO-KUL B20 1x16 3,3/4,2 kV RD
Nexans ref. 10503812
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 10.55 mm
SIWO-KUL B20 1x25 3,3/4,2 kV RD
Nexans ref. 10209643
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 12.2 mm
SIWO-KUL B20 1x35 3,3/4,2 kV RD
Nexans ref. 10503813
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 13.4 mm
SIWO-KUL B20 1x50 3,3/4,2 kV RD
Nexans ref. 10501473
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 15.6 mm
SIWO-KUL B20 1x70 3,3/4,2 kV RD
Nexans ref. 10195615
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 17.45 mm
SIWO-KUL B20 1x95 3,3/4,2 kV RD
Nexans ref. 10501474
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 19.7 mm
SIWO-KUL B20 1x120 3,3/4,2 kV RD
Nexans ref. 10503814
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 21.6 mm
SIWO-KUL B20 1x150 3,3/4,2 kV RD
Nexans ref. 10503815
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 23.3 mm
SIWO-KUL B20 1x185 3,3/4,2 kV RD
Nexans ref. 10503816
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 25.3 mm
SIWO-KUL B20 1x240 3,3/4,2 kV RD
Nexans ref. 10503817
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 27.7 mm
SIWO-KUL B20 1x300 3,3/4,2 kV RD
Nexans ref. 10503818
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 31.45 mm
Description
Description
Standards
-
InternationalEN 45545 - HL3; IEC 60092; IEC 60228; IEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
-
NationalCSA C22.2 N° 210-05; UL 758
Application
- Connection of rotating machines windings, like motors, alternators, generators.
- Cabling of static devices, like power converters, motor drives, power cabinets, transformers
- Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems
Construction
- Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
- High grade silicon rubber insulation
- Mechnical protection by silicone coated synthetic fibre braid
Properties
- Operating temperature in continuous mode -55°C to +180°C
- Resistance to thermal shocks, UV and oils
- Compatibility to VPI impregnation resins
- Type approval certificate : Lloyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
- Certificate of compliance : UL758 AWM Style 3641, file : AVLV2.E45073
- Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Operating voltage
3.3 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 180 °C
Chemical resistance
Good
Oil resistance
Yes
Flame retardant
IEC 60332-1
Fire retardant
IEC 60332-3
Fire resistant
IEC 60331
Gases corrosivity
IEC 60754-1; IEC 60754-2
Smoke density
IEC 61034
