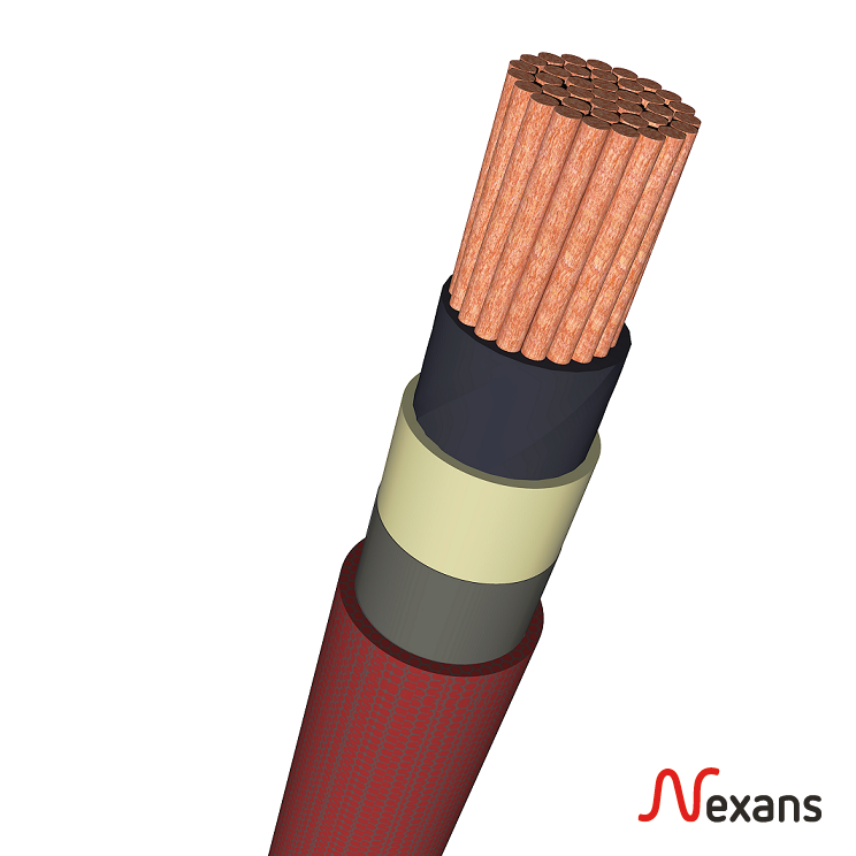

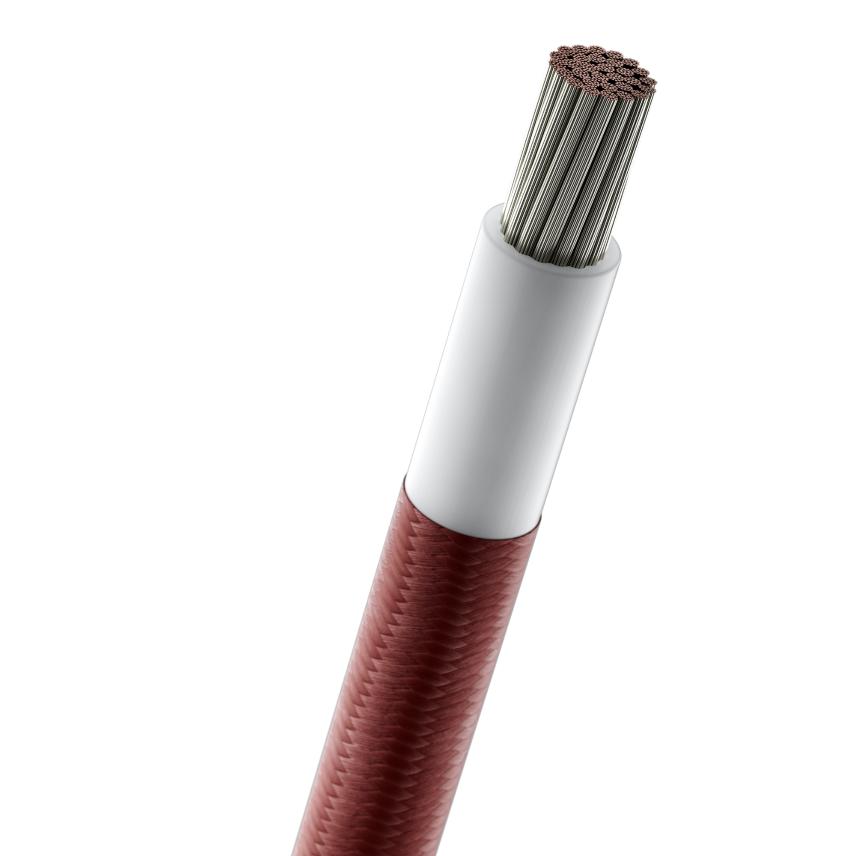

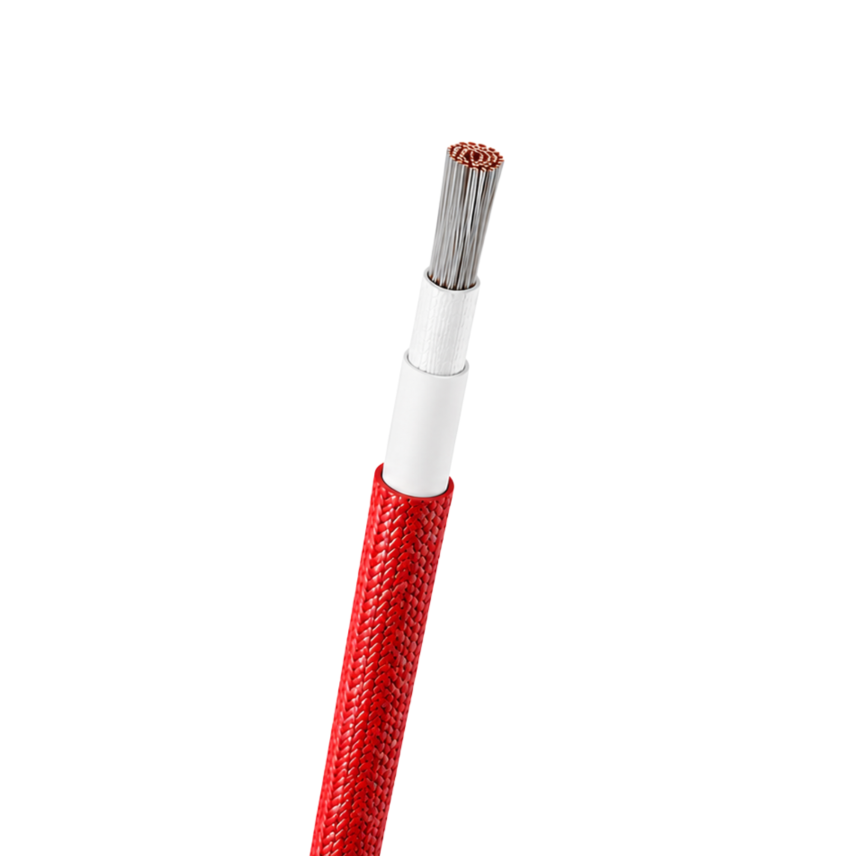

Nexans SIWO-KUL® B10 3.3 / 4.2 kV
Nexans SIWO-KUL® B10 3.3 / 4.2 kV
The SIWO-KUL® B10 3.3/4.2 kV cable family is designed to provide maximum reliability in environments subject to high thermal, electrical, and mechanical stresses. Thanks to their high flexibility and resistance to thermal shock, oils, and other solvents, these cables ensure long-lasting performance in railway, marine, and energy-related industrial applications.
Read moreSIWO-KUL B10 1x2.5 3,3/4,2kV RD
Nexans ref. 10148775
- Packaging: Cut to length (m)
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 6.3 mm
SIWO-KUL B10 1x4.0 3,3/4,2kV RD
Nexans ref. 10148776
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 6.8 mm
SIWO-KUL B10 1x6.0 3,3/4,2kV RD
Nexans ref. 10148756
- Packaging: Cut to length (m)
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 7.25 mm
SIWO-KUL B10 1x10 3,3/4,2kV RD
Nexans ref. 10148757
- Packaging: Cut to length (m)
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 8.2 mm
SIWO-KUL B10 1x16 3,3/4,2kV RD
Nexans ref. 10148758
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 10.15 mm
SIWO-KUL B10 1x25 3,3/4,2kV RD
Nexans ref. 10148759
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 11.75 mm
SIWO-KUL B10 1x35 3,3/4,2kV RD
Nexans ref. 10148752
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 12.9 mm
SIWO-KUL B10 1x50 3,3/4,2kV RD
Nexans ref. 10148762
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 14.95 mm
SIWO-KUL B10 1x70 3,3/4,2kV RD
Nexans ref. 10148760
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 16.9 mm
SIWO-KUL B10 1x95 3,3/4,2kV RD
Nexans ref. 10148763
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 18.8 mm
SIWO-KUL B10 1x120 3,3/4,2kV RD
Nexans ref. 10148753
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 20.9 mm
SIWO-KUL B10 1x150 3,3/4,2kV RD
Nexans ref. 10148754
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 22.5 mm
SIWO-KUL B10 1x185 3,3/4,2kV RD
Nexans ref. 10148766
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 24.4 mm
SIWO-KUL B10 1x240 3,3/4,2kV RD
Nexans ref. 10148755
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 27.0 mm
SIWO-KUL B10 1x300 3,3/4,2kV RD
Nexans ref. 10191259
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 30.2 mm
SIWO-KUL B10 1x400 3,3/4,2kV RD
Nexans ref. 60007150
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 33.9 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; EN 45545 - HL3; IEC 60228; UL 758
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® B10 3.3/4.2 kV cable range is specifically developed for:
- Connection of windings in rotating machines and transformers with thermal insulation class F and H
- Wiring of power cabinets, converters, and motor controls
- Industrial installations exposed to high thermal stress
- Wind, marine, and railway OEM applications
- AC/DC interconnections for PV systems and battery storage installations
Key Benefits
- High flexibility ideal for compact installations
- Excellent thermal resistance (-55°C to +180°C continuous operation)
- Compatible with major impregnation resins
- Reinforced mechanical protection
- Very good resistance to oils, UV radiation, and chemical agents
- High durability for long service life
- International approvals and certifications
- Fire performance
By choosing the SIWO-KUL® range, you opt for a flexible, robust, and durable cable designed to ensure high performance in the most demanding environments.
