VOBbox H07V-U Eca

Products

VDbox H07V-U Eca 1.5 BLACK 5D100 NEW

Nexans ref. 10570771

  • Packaging: Box (100m)
  • Wire colour: Black
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VDbox H07V-U Eca 1.5 BLACK/WHITE 5D100 NEW

Nexans ref. 10570779

  • Packaging: Box (100m)
  • Wire colour: Black / white
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VDbox H07V-U Eca 2.5 BLUE 5D100 NEW

Nexans ref. 10570772

  • Packaging: Box (100m)
  • Wire colour: Blue
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VDbox H07V-U Eca 2.5 GR-YE 5D100 NEW

Nexans ref. 10570774

  • Packaging: Box (100m)
  • Wire colour: Green / yellow
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VDbox H07V-U Eca 2.5  BROWN 5D100 NEW

Nexans ref. 10570773

  • Packaging: Box (100m)
  • Wire colour: Brown
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 BLACK D100 P24km NEW

Nexans ref. 10533330

  • Packaging: Box (100m)
  • Wire colour: Black
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 1.5 BLACK D100 P6km NEW

Nexans ref. 10546241

  • Packaging: Box (100m)
  • Wire colour: Black
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 1.5 BLUE D100 P24km NEW

Nexans ref. 10567006

  • Packaging: Box (100m)
  • Wire colour: Blue
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 BLUE D100 P6km NEW

Nexans ref. 10546310

  • Packaging: Box (100m)
  • Wire colour: Blue
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 1.5 BROWN D100 P24km NEW

Nexans ref. 10567007

  • Packaging: Box (100m)
  • Wire colour: Brown
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 BROWN D100 P6km NEW

Nexans ref. 10546311

  • Packaging: Box (100m)
  • Wire colour: Brown
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 1.5 GN/YE D100 P24km NEW

Nexans ref. 10567008

  • Packaging: Box (100m)
  • Wire colour: Green / yellow
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 GN/YE D100 P6km NEW

Nexans ref. 10546312

  • Packaging: Box (100m)
  • Wire colour: Green / yellow
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 1.5 GREY D100 P24km NEW

Nexans ref. 10564809

  • Packaging: Box (100m)
  • Wire colour: Grey
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 GREY D100 P6km NEW

Nexans ref. 10564778

  • Packaging: Box (100m)
  • Wire colour: Grey
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 OR D100 P6km

Nexans ref. 10570892

  • Packaging: Box (100m)
  • Wire colour: Orange
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 RED D100 P24km NEW

Nexans ref. 10564830

  • Packaging: Box (100m)
  • Wire colour: Red
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 1.5 RED D100 P6km NEW

Nexans ref. 10564790

  • Packaging: Box (100m)
  • Wire colour: Red
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 BLACK D100 P6km NEW

Nexans ref. 10564777

  • Packaging: Box (100m)
  • Wire colour: Black
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 2.5 BLACK D100P22.5 NEW

Nexans ref. 10564792

  • Packaging: Box (100m)
  • Wire colour: Black
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 2.5 BLUE D100 P22.5km NEW

Nexans ref. 10533331

  • Packaging: Box (100m)
  • Wire colour: Blue
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 BLUE D100 P6km NEW

Nexans ref. 10546242

  • Packaging: Box (100m)
  • Wire colour: Blue
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 BROWN D100 P22.5km NEW

Nexans ref. 10533332

  • Packaging: Box (100m)
  • Wire colour: Brown
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 BROWN D100 P6km NEW

Nexans ref. 10546272

  • Packaging: Box (100m)
  • Wire colour: Brown
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 GN/YE D100 P22.5km NEW

Nexans ref. 10533333

  • Packaging: Box (100m)
  • Wire colour: Green / yellow
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 GN/YE D100 P6km NEW

Nexans ref. 10546273

  • Packaging: Box (100m)
  • Wire colour: Green / yellow
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km



VOB-VDBOX H07V-U Eca 2.5 GREY D100 P22.5 NEW

Nexans ref. 10564793

  • Packaging: Box (100m)
  • Wire colour: Grey
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 2.5 GREY D100 P6km NEW

Nexans ref. 10564779

  • Packaging: Box (100m)
  • Wire colour: Grey
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 2.5 RED D100 P6km NEW

Nexans ref. 10564791

  • Packaging: Box (100m)
  • Wire colour: Red
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDBOX H07V-U Eca 2.5 RED D100P22.5km NEW

Nexans ref. 10564794

  • Packaging: Box (100m)
  • Wire colour: Red
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 24.2 V/A.km



VOB-VDbox 07V-U Eca 1.5 BK/WH D100 P24km NEW

Nexans ref. 10567815

  • Packaging: Box (100m)
  • Wire colour: Black / white
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 14.8 V/A.km



Description

Description

Standards

  • Product
    EN 50525-2-31; IEC 60228

Application

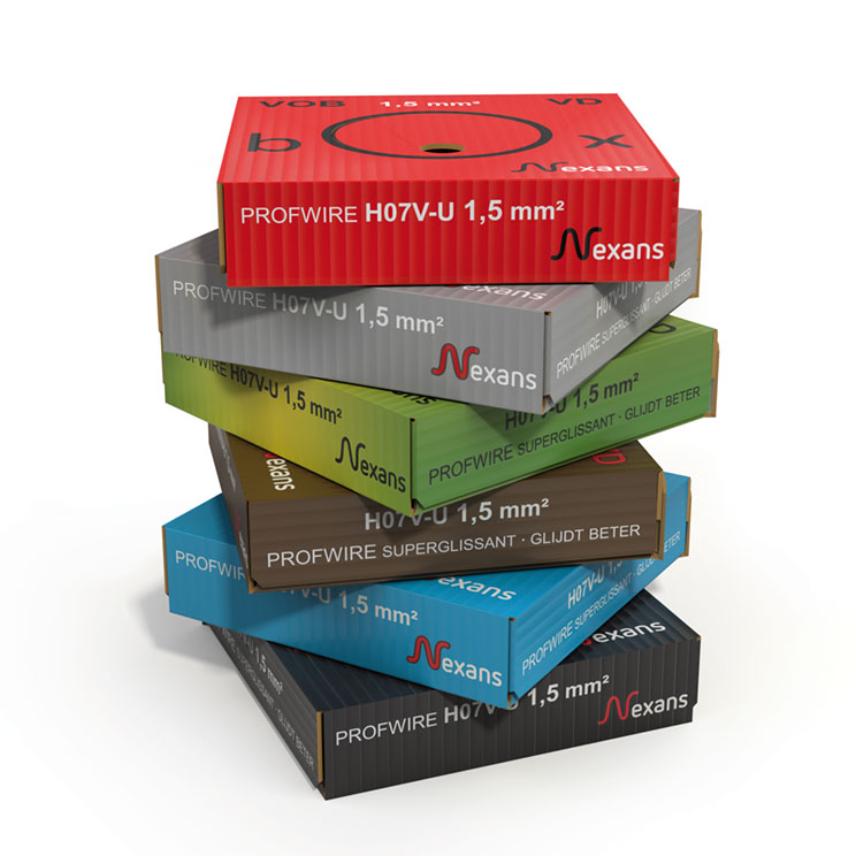

The colored box packaging VOBbox is made of special strong moisture resistant cardboard. Easy to use in humid conditions or in bad weather. The VOBbox is available in 6 different colors, with the color of the box corresponding to the color of the wire inside .

H07V-U Eca is an installation wire according to fire classification Eca for use indoor in residential and similar installations with a low fire hazard level. They have a low friction coefficient and are suitable for fixed installation in tubes or skirting-board systems.

Design

  • Conductor:    Bare copper, solid, class 1
  • Insulation:     Special PVC, with enhanced sliding properties
  • Section:        1.5 mm² and 2.5 mm²
  • Packaging:   100m in the VOBbox, a moisture-proof cardboard with color recognition

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor shape
Round, massive
Conductor flexibility
Solid class 1
Insulation
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Bending factor when laying
4 (xD)
Field of application
Indoor
Max. conductor temperature in service
70 °C
Operating temperature, range
0 ... 60 °C
Resistance to vibrations
Moderate
Chemical resistance
Medium
