YMvK Dca ULTIMO FLEX 0.6/1 kV 3x95 mm2 MTR

Application

YMvK Dca ULTIMO 0.6/1 kV is a power cable for general use in construction works subject to performance requirements on reaction to fire. YMvK Dca ULTIMO 0.6/1 kV is suitable for application in low voltage installations up to 0.6/1 kV, according to NEN 1010. It meets the requirements according to fire classification Dca-s2,d2,a3 for usage in buildings and civil engineering works with a medium fire hazard level (NEN 8012). Available from 35 mm2: Nexans YMz1K Cca ULTIMO FLEX, provided with conductors with increased bendability.
Thanks to its improved flexibility YMvK Dca ULTIMO FLEX 0.6/1 kV is easier to install then the non-flexible version. YMvK Dca ULTIMO FLEX 0.6.1 kV is available from 35 mm2.

Key features of ULTIMO

• Faster stripping: up to 80% time savings thanks to the optimized sheath
• Improved safety: one cut and bend are enough – reducing the risk of injury or conductor damage
• UV-resistant: suitable for outdoor use, our ables passed the 720 hour test standard EN 50289-4-17 Method A
• With EPD Environmental Product Declaration: PEP EcoPassport provides full insight into the ecological footprint of the cables

Benefits for the installer

Nexans YMvK Dca ULTIMO combines speed, ease of use and sustainability – exactly what you need on today’s jobsite. Ask for it at your wholesaler.

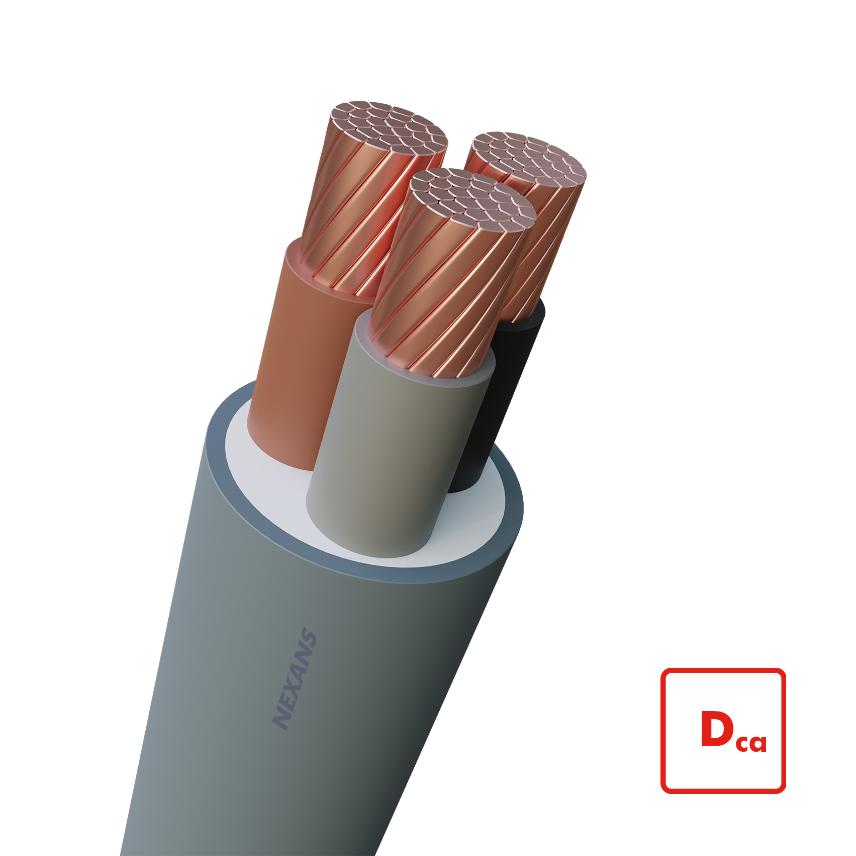

Design

1. Conductor: Conductors untill 10 mm2: Bare copper, solid, class 1
   Conductors from 10 mm2: Bare copper, stranded, class 2
2. Insulation: XLPE
3. Inner covering: filling compound
4. Outer sheath: PVC
   Colour: Grey
5. UV resistance: Yes

Core identification

• 1 core : black
• 2 cores : brown - blue
• 3G cores: brown - blue - green/yellow
• 3x cores : black - brown - grey
• 4 cores : brown - black - grey - green/yellow
• 5 cores : brown - blue - black - grey - green/yellow
