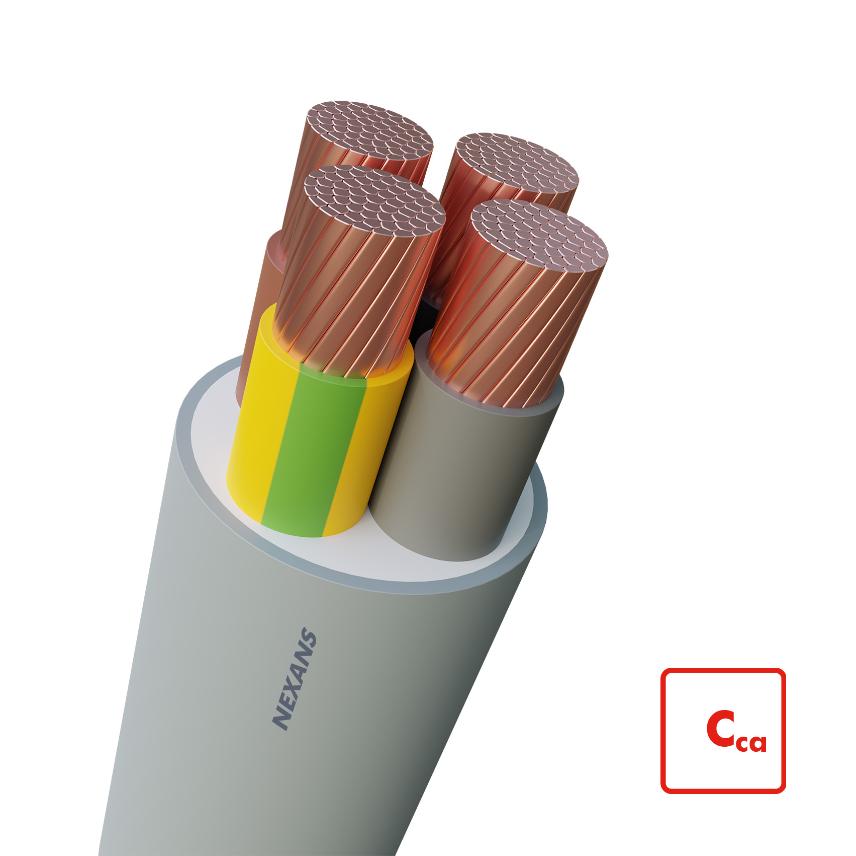

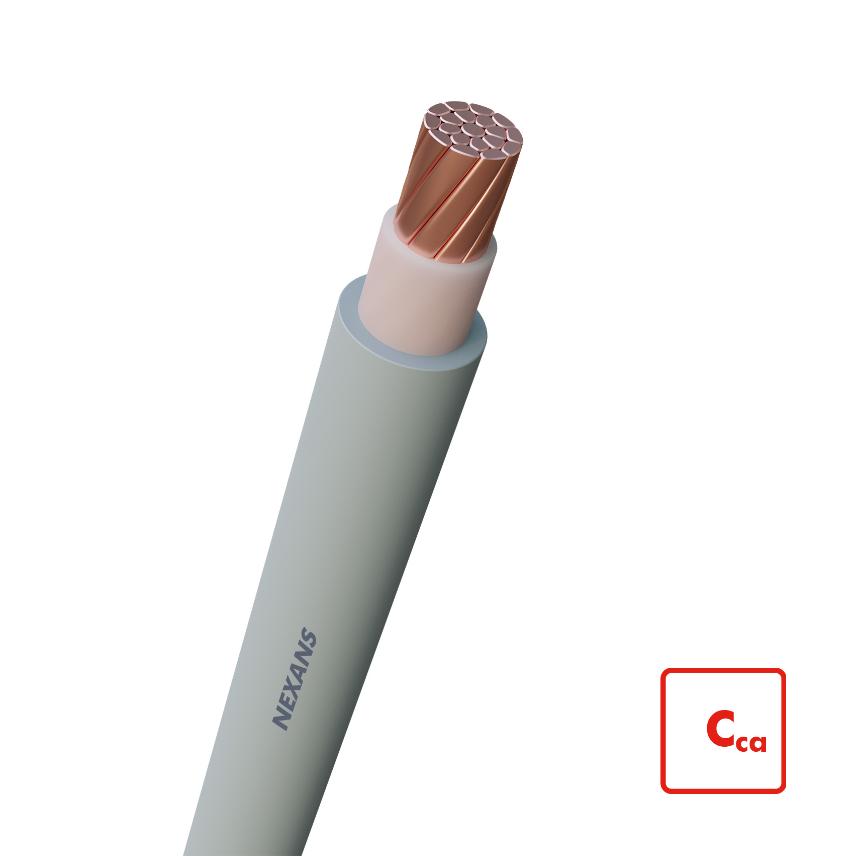

Nexans YMz1K Cca ULTIMO 0.6/1 kV
NEW
Nexans YMz1K Cca ULTIMO 0.6/1 kV
Nexans YMz1K Cca ULTIMO 0.6/1 kV sets the new benchmark in installation cables. Nexans YMz1K Cca ULTIMO 0.6/1 kV is a halogen free power cable according to fire classification Cca-s1,d1,a1 for connection in low voltage installation up to 0.6/1 kV in construction works with a high fire hazard level. Thanks to its innovative sheath technology, the cable can be stripped up to 80% faster. Available from 35 mm2: Nexans YMz1K Cca ULTIMO FLEX, provided with conductors with increased bendability.
Read moreYMz1K Cca ULTIMO 0.6/1 kV 2x1.5 mm2 MTR
Nexans ref. 10514620
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 10.2 mm
- Approximate weight: 180 kg/km
- Permissible current rating in open air: 26 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G1.5 mm2 MTR
Nexans ref. 10515495
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 10.6 mm
- Approximate weight: 207 kg/km
- Permissible current rating in open air: 23 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G1.5 mm2 B500
Nexans ref. 10515498
- Packaging: Drum (500m)
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 10.6 mm
- Approximate weight: 207 kg/km
- Permissible current rating in open air: 23 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G1.5 mm2 MTR
Nexans ref. 10515538
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 11.4 mm
- Approximate weight: 242 kg/km
- Permissible current rating in open air: 23 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G1.5 mm2 B500
Nexans ref. 10515539
- Packaging: Drum (500m)
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 11.4 mm
- Approximate weight: 242 kg/km
- Permissible current rating in open air: 23 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G1.5 mm2 B500
Nexans ref. 10515546
- Packaging: Drum (500m)
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 13.9 mm
- Approximate weight: 280 kg/km
- Permissible current rating in open air: 23 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G1.5 mm2 MTR
Nexans ref. 10515545
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 13.9 mm
- Approximate weight: 280 kg/km
- Permissible current rating in open air: 23 A
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x2.5 mm2 B500
Nexans ref. 10515490
- Packaging: Drum (500m)
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 11.0 mm
- Approximate weight: 214 kg/km
- Permissible current rating in open air: 36 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x2.5 mm2 MTR
Nexans ref. 10515467
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 11.0 mm
- Approximate weight: 214 kg/km
- Permissible current rating in open air: 36 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G2.5 mm2 B500
Nexans ref. 10515535
- Packaging: Drum (500m)
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 11.6 mm
- Approximate weight: 250 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G2.5 mm2 MTR
Nexans ref. 10515521
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 11.6 mm
- Approximate weight: 250 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G2.5 mm2 R100 NEW
Nexans ref. 10573116
- Packaging: Ring (100m)
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 11.6 mm
- Approximate weight: 250 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G2.5 mm2 B500
Nexans ref. 10515541
- Packaging: Drum (500m)
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 12.5 mm
- Approximate weight: 300 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G2.5 mm2 MTR
Nexans ref. 10515540
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 12.5 mm
- Approximate weight: 300 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G2.5 mm2 MTR
Nexans ref. 10515548
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 14.7 mm
- Approximate weight: 340 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G2.5 mm2 B500
Nexans ref. 10515549
- Packaging: Drum (500m)
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 14.7 mm
- Approximate weight: 340 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G2.5 mm2 R100 NEW
Nexans ref. 10573117
- Packaging: Ring (100m)
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 14.7 mm
- Approximate weight: 340 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 7G2.5 mm2 MTR
Nexans ref. 10535390
- Packaging: Cut to length (m)
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 16.2 mm
- Approximate weight: 440 kg/km
- Permissible current rating in open air: 32 A
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x4 mm2 MTR
Nexans ref. 10535377
- Packaging: Cut to length
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 13.0 mm
- Approximate weight: 266 kg/km
- Permissible current rating in open air: 42 A
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G4 mm2 MTR
Nexans ref. 10515536
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 12.6 mm
- Approximate weight: 315 kg/km
- Permissible current rating in open air: 42 A
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G4 mm2 B500
Nexans ref. 10562729
- Packaging: Drum (500m)
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 12.6 mm
- Approximate weight: 315 kg/km
- Permissible current rating in open air: 42 A
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G4 mm2 MTR
Nexans ref. 10515542
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 13.0 mm
- Approximate weight: 375 kg/km
- Permissible current rating in open air: 42 A
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G4 mm2 MTR
Nexans ref. 10515550
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 16.0 mm
- Approximate weight: 440 kg/km
- Permissible current rating in open air: 42 A
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G4 mm2 B500
Nexans ref. 10562782
- Packaging: Drum (500m)
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 16.0 mm
- Approximate weight: 440 kg/km
- Permissible current rating in open air: 42 A
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x6 mm2 MTR
Nexans ref. 10515492
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 13.2 mm
- Approximate weight: 330 kg/km
- Permissible current rating in open air: 63 A
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G6 mm2 MTR
Nexans ref. 10515537
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 13.6 mm
- Approximate weight: 390 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3G6 mm2 B500
Nexans ref. 10562766
- Packaging: Drum (500m)
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 13.6 mm
- Approximate weight: 390 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G6 mm2 MTR
Nexans ref. 10515543
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 14.7 mm
- Approximate weight: 475 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G6 mm2 MTR
Nexans ref. 10515552
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 17.2 mm
- Approximate weight: 555 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G6 mm2 B500
Nexans ref. 10562784
- Packaging: Drum (500m)
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 17.2 mm
- Approximate weight: 555 kg/km
- Permissible current rating in open air: 54 A
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x10 mm2 MTR
Nexans ref. 10514083
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 16.5 mm
- Approximate weight: 435 kg/km
- Permissible current rating in open air: 86 A
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3x10 mm2 MTR
Nexans ref. 10514081
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 17.2 mm
- Approximate weight: 540 kg/km
- Permissible current rating in open air: 75 A
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G10 mm2 MTR
Nexans ref. 10513553
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 20.5 mm
- Approximate weight: 780 kg/km
- Permissible current rating in open air: 75 A
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x16 mm2 MTR
Nexans ref. 10536525
- Packaging: Cut to length
- Number of cores: 2
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 17.7 mm
- Approximate weight: 647 kg/km
- Permissible current rating in open air: 100 A
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3x16 mm2 MTR
Nexans ref. 10514080
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 19.5 mm
- Approximate weight: 740 kg/km
- Permissible current rating in open air: 100 A
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G16 mm2 MTR
Nexans ref. 10513628
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 21.2 mm
- Approximate weight: 925 kg/km
- Permissible current rating in open air: 100 A
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G16 mm2 MTR
Nexans ref. 10513555
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 23.5 mm
- Approximate weight: 1125 kg/km
- Permissible current rating in open air: 100 A
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 2x25 mm2 MTR
Nexans ref. 10514037
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 21.2 mm
- Approximate weight: 875 kg/km
- Permissible current rating in open air: 149 A
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 3x25 mm2 MTR
Nexans ref. 10514069
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 22.5 mm
- Approximate weight: 1040 kg/km
- Permissible current rating in open air: 127 A
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 4G25 mm2 MTR
Nexans ref. 10513629
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1350 kg/km
- Permissible current rating in open air: 127 A
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
YMz1K Cca ULTIMO 0.6/1 kV 5G25 mm2 MTR
Nexans ref. 10513556
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 26.5 mm
- Approximate weight: 1600 kg/km
- Permissible current rating in open air: 127 A
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x35 mm2 MTR
Nexans ref. 10513967
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 12.5 mm
- Approximate weight: 405 kg/km
- Permissible current rating in open air: 201 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 2x35 mm2 MTR
Nexans ref. 10532544
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 24.0 mm
- Approximate weight: 1224 kg/km
- Permissible current rating in open air: 157 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x35 mm2 MTR
Nexans ref. 10515736
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 25.5 mm
- Approximate weight: 1490 kg/km
- Permissible current rating in open air: 158 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G35 mm2 MTR
Nexans ref. 10513695
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 28.0 mm
- Approximate weight: 1920 kg/km
- Permissible current rating in open air: 158 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G35 mm2 MTR
Nexans ref. 10513649
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 30.6 mm
- Approximate weight: 2335 kg/km
- Permissible current rating in open air: 158 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x50 mm2 MTR
Nexans ref. 10513968
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 13.6 mm
- Approximate weight: 530 kg/km
- Permissible current rating in open air: 246 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 2x50 mm2 MTR
Nexans ref. 10532634
- Packaging: Cut to length
- Number of cores: 2
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 26.8 mm
- Approximate weight: 1555 kg/km
- Permissible current rating in open air: 192 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x50 mm2 MTR
Nexans ref. 10515737
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 28.5 mm
- Approximate weight: 1950 kg/km
- Permissible current rating in open air: 192 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G50 mm2 MTR
Nexans ref. 10513995
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 31.5 mm
- Approximate weight: 2475 kg/km
- Permissible current rating in open air: 192 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G50 mm2 MTR
Nexans ref. 10513648
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 35.0 mm
- Approximate weight: 3040 kg/km
- Permissible current rating in open air: 192 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x70 mm2 MTR
Nexans ref. 10513990
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 16.0 mm
- Approximate weight: 710 kg/km
- Permissible current rating in open air: 318 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 2x70 mm2 MTR
Nexans ref. 10532637
- Packaging: Cut to length
- Number of cores: 2
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 31.3 mm
- Approximate weight: 2150 kg/km
- Permissible current rating in open air: 246 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x70 mm2 MTR
Nexans ref. 10515738
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 33.6 mm
- Approximate weight: 2720 kg/km
- Permissible current rating in open air: 246 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G70 mm2 MTR
Nexans ref. 10513996
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 37.3 mm
- Approximate weight: 3455 kg/km
- Permissible current rating in open air: 246 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G70 mm2 MTR
Nexans ref. 10513651
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 41.3 mm
- Approximate weight: 4290 kg/km
- Permissible current rating in open air: 246 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x95 mm2 MTR
Nexans ref. 10513992
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 18.0 mm
- Approximate weight: 1010 kg/km
- Permissible current rating in open air: 389 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x95 mm2 MTR
Nexans ref. 10515745
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 37.3 mm
- Approximate weight: 3730 kg/km
- Permissible current rating in open air: 298 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G95 mm2 MTR
Nexans ref. 10513694
- Packaging: Cut to length
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 41.5 mm
- Approximate weight: 4760 kg/km
- Permissible current rating in open air: 298 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G95 mm2 MTR
Nexans ref. 10513650
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 46.0 mm
- Approximate weight: 5900 kg/km
- Permissible current rating in open air: 298 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x120 mm2 MTR
Nexans ref. 10514000
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 21.3 mm
- Approximate weight: 1255 kg/km
- Permissible current rating in open air: 454 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x120 mm2 MTR
Nexans ref. 10515755
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 40.8 mm
- Approximate weight: 4630 kg/km
- Permissible current rating in open air: 346 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G120 mm2 MTR
Nexans ref. 10514211
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 45.6 mm
- Approximate weight: 5930 kg/km
- Permissible current rating in open air: 346 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G120 mm2 MTR
Nexans ref. 10514089
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 51.2 mm
- Approximate weight: 7295 kg/km
- Permissible current rating in open air: 346 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x150 mm2 MTR
Nexans ref. 10514100
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 24.2 mm
- Approximate weight: 1535 kg/km
- Permissible current rating in open air: 527 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x150 mm2 MTR
Nexans ref. 10532559
- Packaging: Cut to length
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 46.0 mm
- Approximate weight: 5695 kg/km
- Permissible current rating in open air: 399 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G150 mm2 MTR
Nexans ref. 10514029
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 51.0 mm
- Approximate weight: 7280 kg/km
- Permissible current rating in open air: 399 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G150 mm2 MTR
Nexans ref. 10514217
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 57.0 mm
- Approximate weight: 8860 kg/km
- Permissible current rating in open air: 399 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x185 mm2 MTR
Nexans ref. 10514101
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 26.5 mm
- Approximate weight: 1912 kg/km
- Permissible current rating in open air: 605 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 3x185 mm2 MTR
Nexans ref. 10515655
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 51.2 mm
- Approximate weight: 7150 kg/km
- Permissible current rating in open air: 456 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G185 mm2 MTR
Nexans ref. 10514026
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 57.2 mm
- Approximate weight: 9160 kg/km
- Permissible current rating in open air: 456 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 5G185 mm2 MTR
Nexans ref. 10514198
- Packaging: Cut to length (m)
- Number of cores: 5
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 63.5 mm
- Approximate weight: 11050 kg/km
- Permissible current rating in open air: 456 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 1x240 mm2 MTR
Nexans ref. 10514102
- Packaging: Cut to length (m)
- Number of cores: 1
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 29.2 mm
- Approximate weight: 2385 kg/km
- Permissible current rating in open air: 719 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
YMz1K Cca ULTIMO FLEX 0.6/1 kV 4G240 mm2 MTR
Nexans ref. 10514122
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 63.7 mm
- Approximate weight: 11885 kg/km
- Permissible current rating in open air: 538 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
Description
Description
Standards
-
ProductHD 604 S1 part 5/sect. C; IEC 60228
Application
Nexans YMz1K Cca is a halogen free low smoke power cable for general use in construction works subject to performance requirements on reaction to fire. Nexans YMz1K Cca is suitable for application in low voltage installations up to 0.6/1 kV, according to NEN 1010. It meets the requirements according to fire classification Cca-s1,d1,a1 for buildings and civil engineering works with a high fire hazard level (NEN 8012). Available from 35 mm2: Nexans YMz1K Cca ULTIMO FLEX, provided with conductors with increased bendability.
Key features of ULTIMO
- Faster stripping: up to 80% time savings thanks to the optimized sheath
- Improved safety: one cut and bend are enough – reducing the risk of injury or conductor damage
- UV-resistant: suitable for outdoor use, our ables passed the 720 hour test standard EN 50289-4-17 Method A
- With EPD Environmental Product Declaration: PEP EcoPassport provides full insight into the ecological footprint of the cables
Benefits for the installer
Nexans YMz1K Cca ULTIMO combines speed, ease of use and sustainability – exactly what you need on today’s jobsite. Ask for it at your wholesaler.
Design
- Conductor
Sections till 10 mm2: Bare copper, solid , class 1
Sections from 10 mm2: Bare copper, stranded, class 2 - Insulation: XLPE
- Inner covering: Halogen free compound
- Outer sheath: Halogen free compound
Colour: grey
UV resistance: Yes
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Insulation
XLPE (Cross-linked Polyethylene)
Outer sheath
Halogen free compound
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Bending factor when laying
10 (xD)
One single bending at each end minimum
8 (xD)
Field of application
Standard
Minimum installation temperature
0 °C
Operating temperature, range
-20 ... 80 °C
Max. conductor temperature in service
90 °C
U.V resistance
EN 50289-4-17 method A, for 720h
Resources
Resources
Selling & delivery Information
Marking
YMz1K Cca-s1,d1,a1 (FLEX) n (x or G) s mm²
DOP Ref: [number]
NEXANS ULTIMO
KEMA KEUR
Core identification
- 1 core: neutral
- 2 cores: brown - light blue
- 3G cores: green/yellow - light blue - brown
- 3x cores: black -grey- brown
- 4 cores: green/yellow - brown-black-grey
- 5 cores: green/yellow - light blue - brown - black - grey
Related products
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
